PVC Pipe Underwater ROV Drawings

PVC Pipe Vessel and Thruster Design Drawings for Underwater ROV.

Drawing Set # 1:

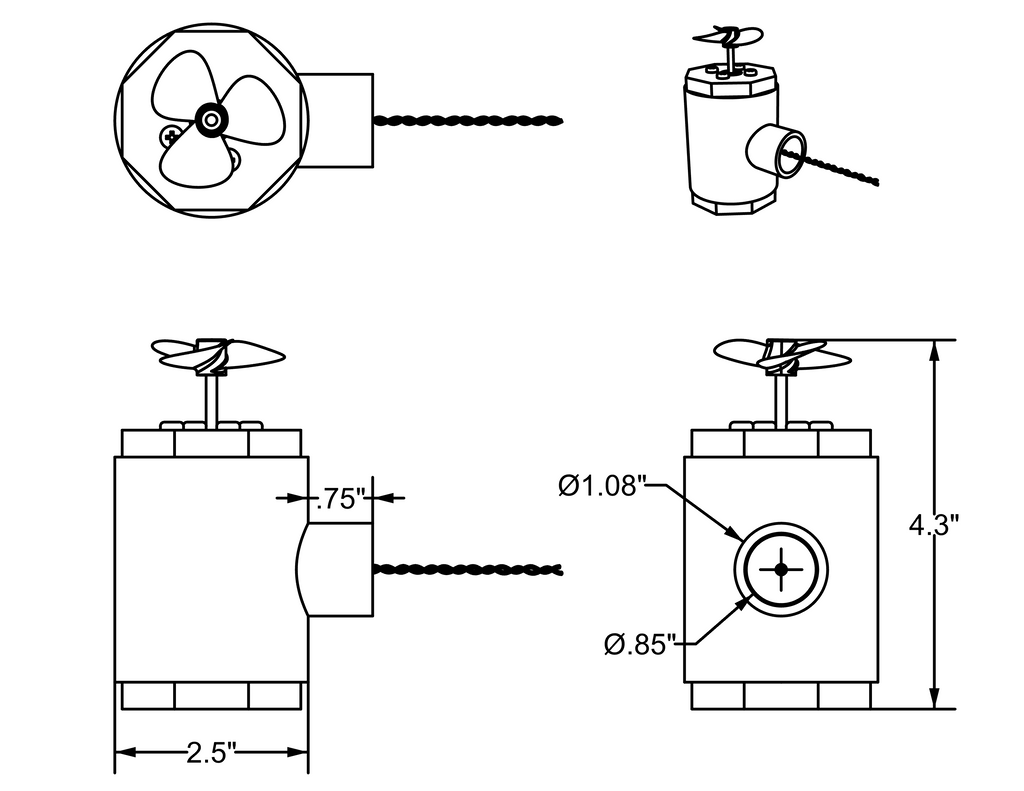

Shows how to build a thruster housing for our motors.

Shows how to build a pressure hull for the electronics package.

Drawing Set # 2:

Shows how to assemble a close replica of the PVC, 4 thruster unit in the 3-D picture.
