6+ Motor Control Board ( Modified )
  • 6+ Motor Control Board ( Modified )
  • 6+ Motor Control Board ( Modified )
  • 6+ Motor Control Board ( Modified )
  • 6+ Motor Control Board ( Modified )
6+ Motor Control Board ( Modified )

6+ Motor Control Board ( Modified )

$275.00

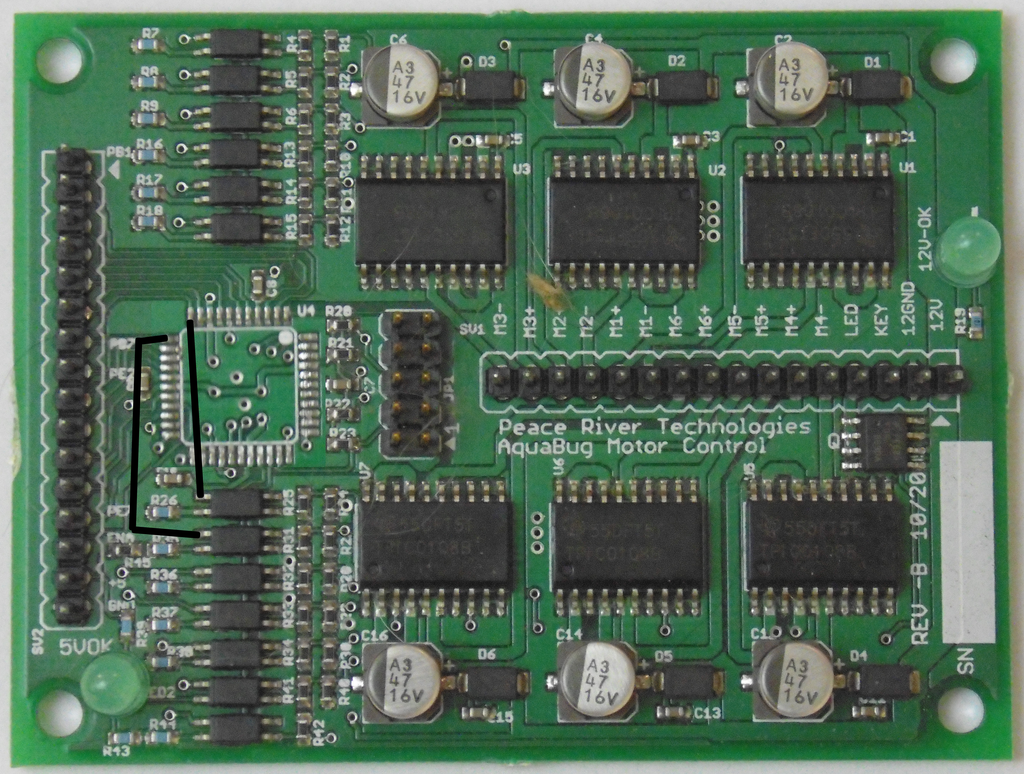

Same Motor Control Board as the unmodified unit with the following differences:
Atmel ATF1502ASL Chip Removed.

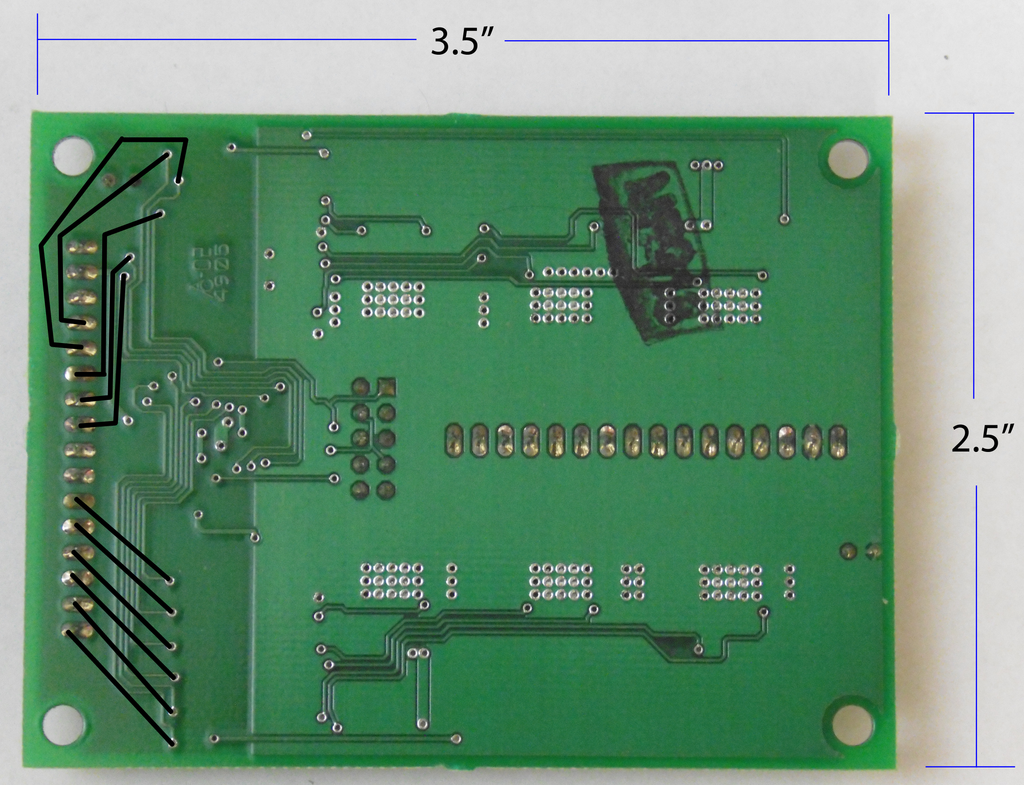

Wires connected to all Optoisolators and the 16 Pin Header for the inputs.
+ 5 volts IN and LED has no Function.
Unmodified Section:
6 - TPIC0108B PWM Motor Control Chips rated up to 2 amps each.
1 - CMOS Output for PWM control of an LED Array or something else.
1 - 16 Pin Header for Inputs and Power in connections.
1 - 16 Pin Header for Outputs to motors etc.
LED for 12v In status indication.
Board size is 3.5" x 2.5"
